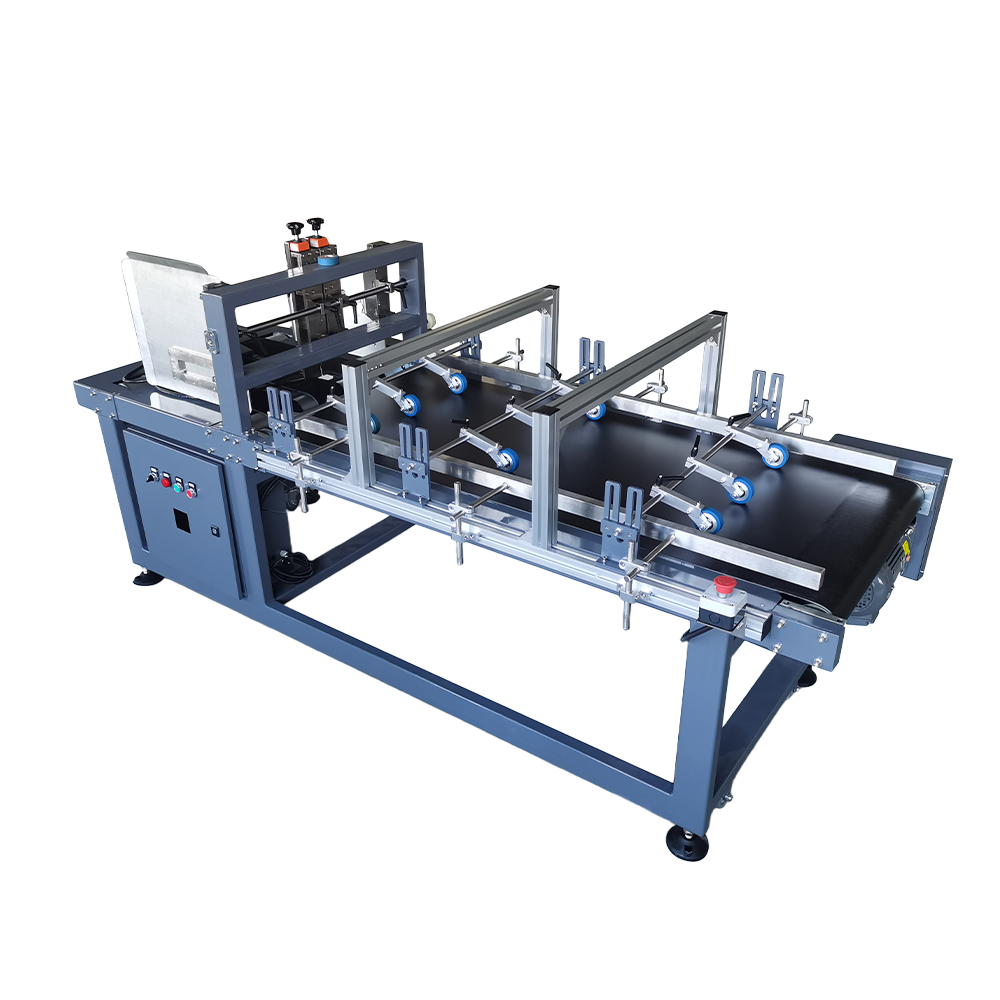

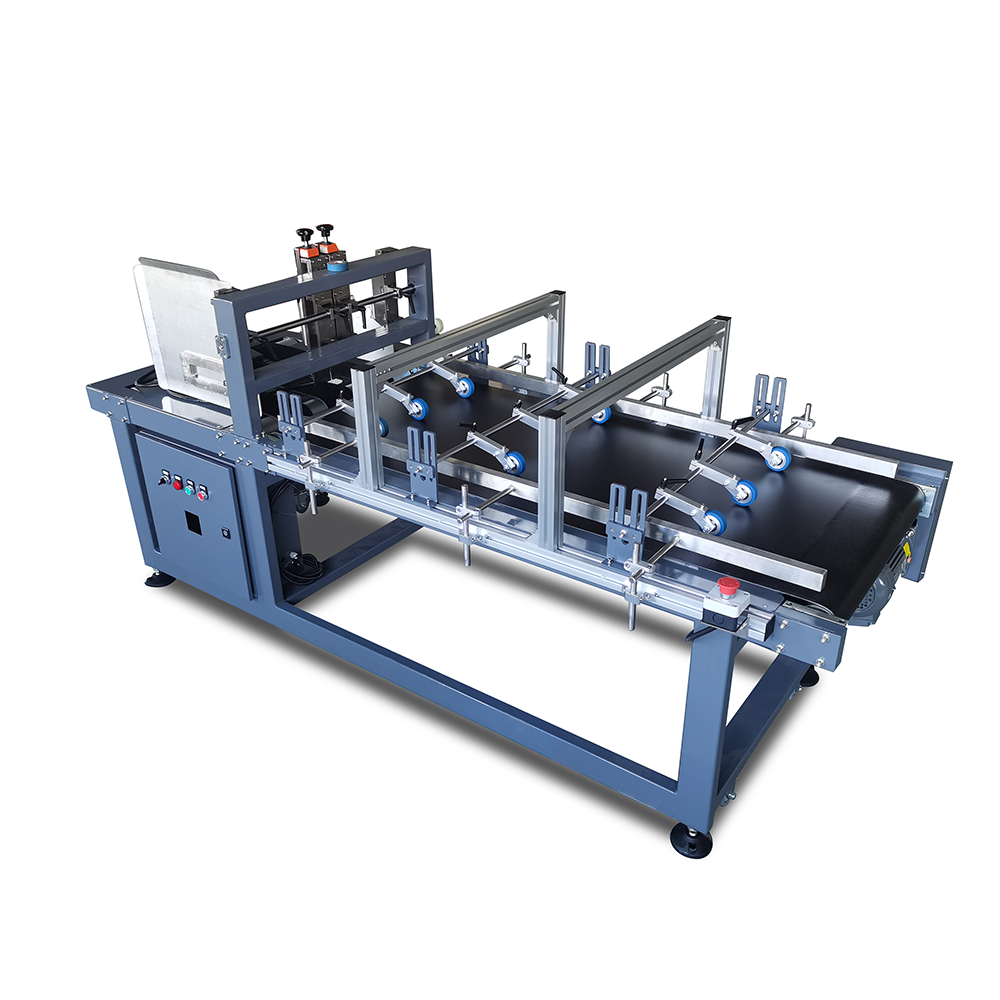

9011D-950 Horizontal Carton Feeder
* Horizontal flat stacking feeding design, specially for large oversized empty cartons.
* Large-capacity feeding platform reduces frequent manual material replenishment.
* Reinforced heavy-duty frame and widened conveying belt for stable operation.
* High-efficiency friction separating system prevents double sheets and material jamming.
* Suitable for thick 5-layer & 7-layer corrugated large packaging cartons.
* Side guiding structure ensures stable conveying without deviation or warping.
* Low machine body, easy operation and convenient connection with printing production lines.
Technical Parameters
1. Overall dimensions: 2500*1000/850*750±50 mm
2. Main equipment material: Carbon steel with plastic spraying finish
3. Conveying speed: 10–50 m/min
4. Vertical knife type separating mechanism
5. Separating section: Grass belt; Conveying section: Green PVC conveyor belt
6. Applicable materials: Carton boxes
7. Workpiece size:
8. Maximum width: 950 mm
9. Thickness: 6–15 mm10. Variable frequency speed control: Schneider
