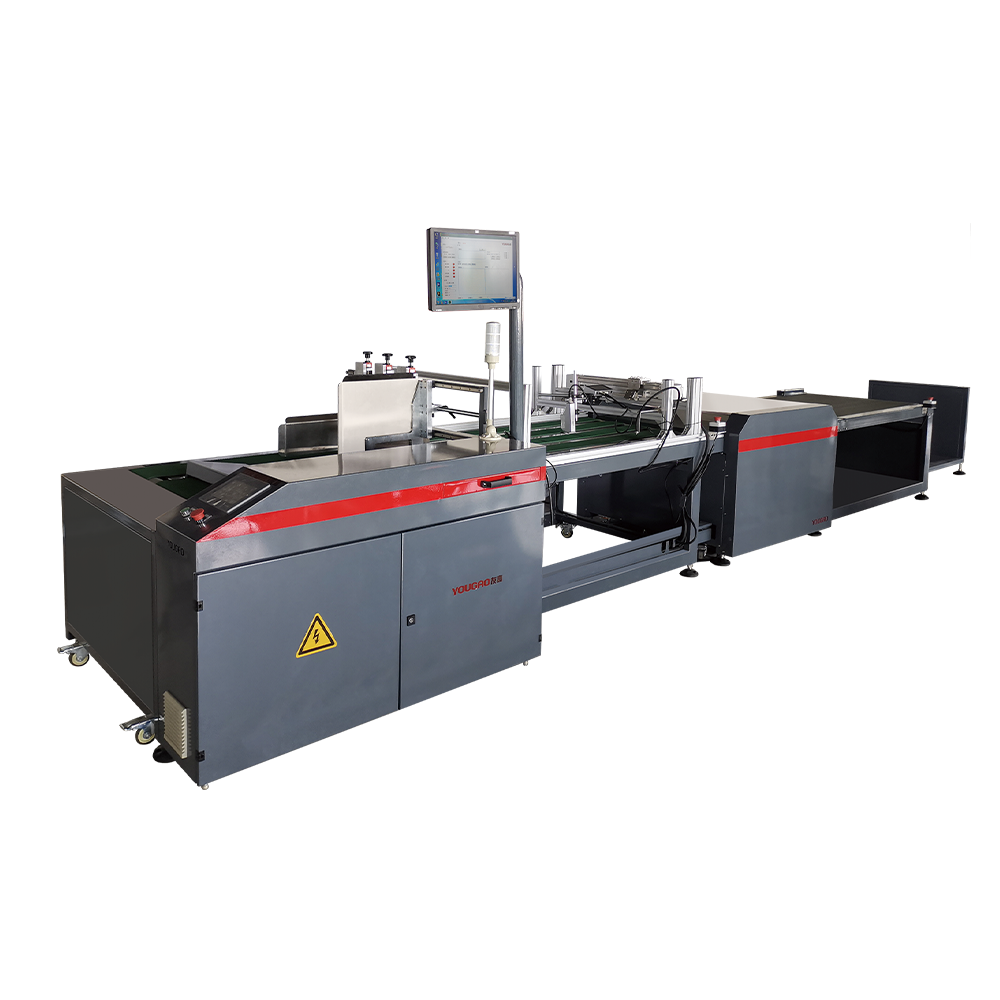

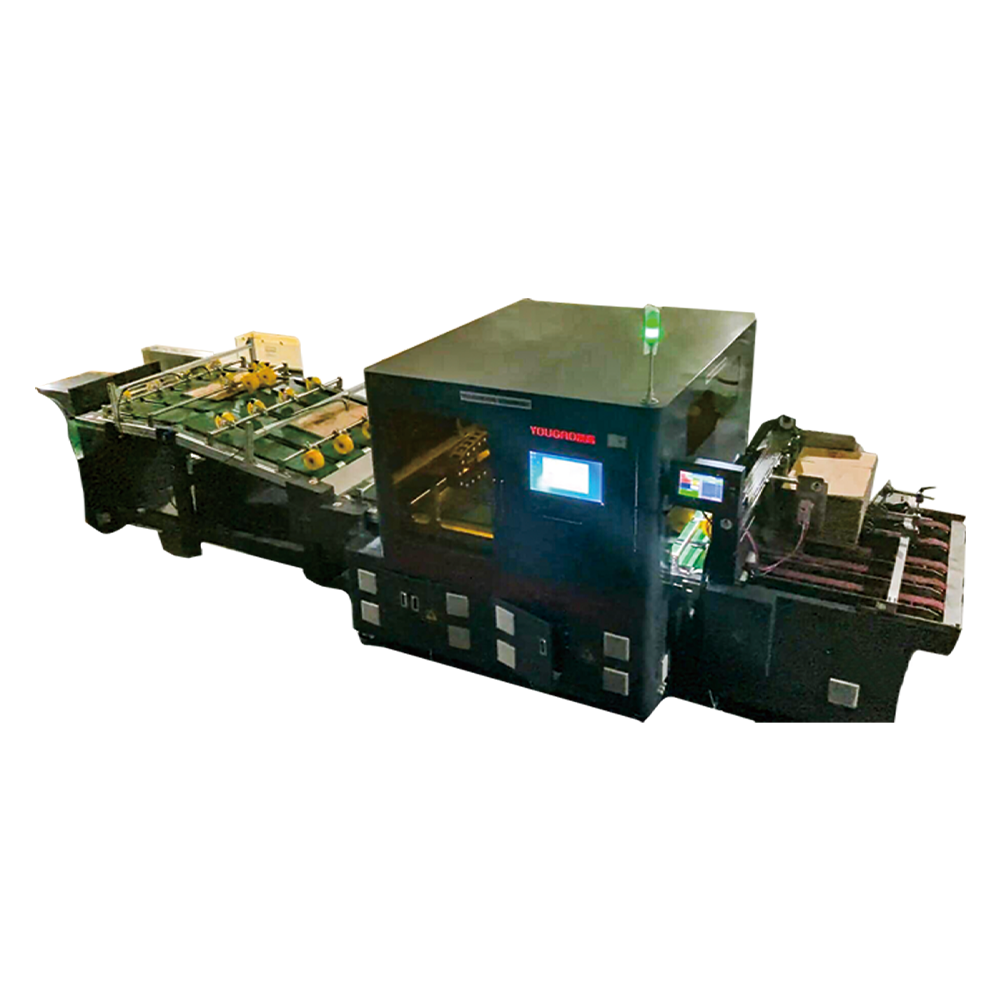

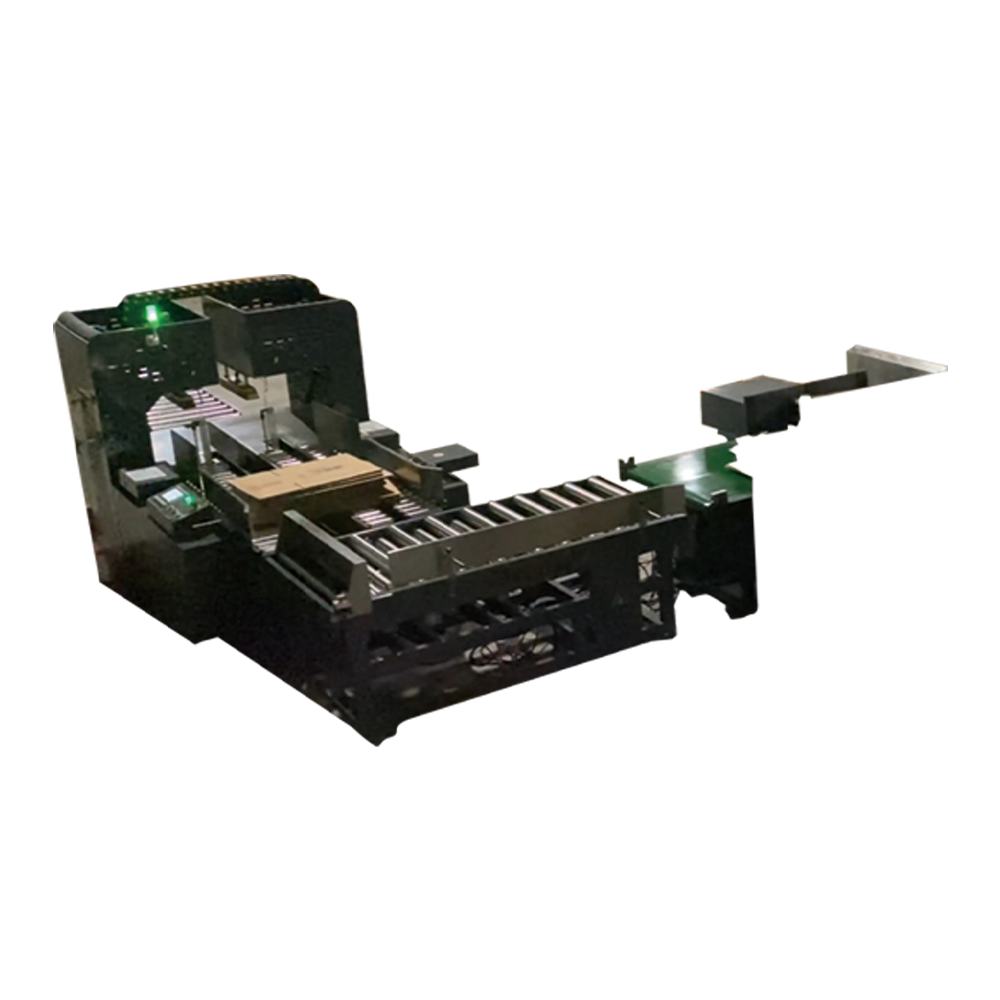

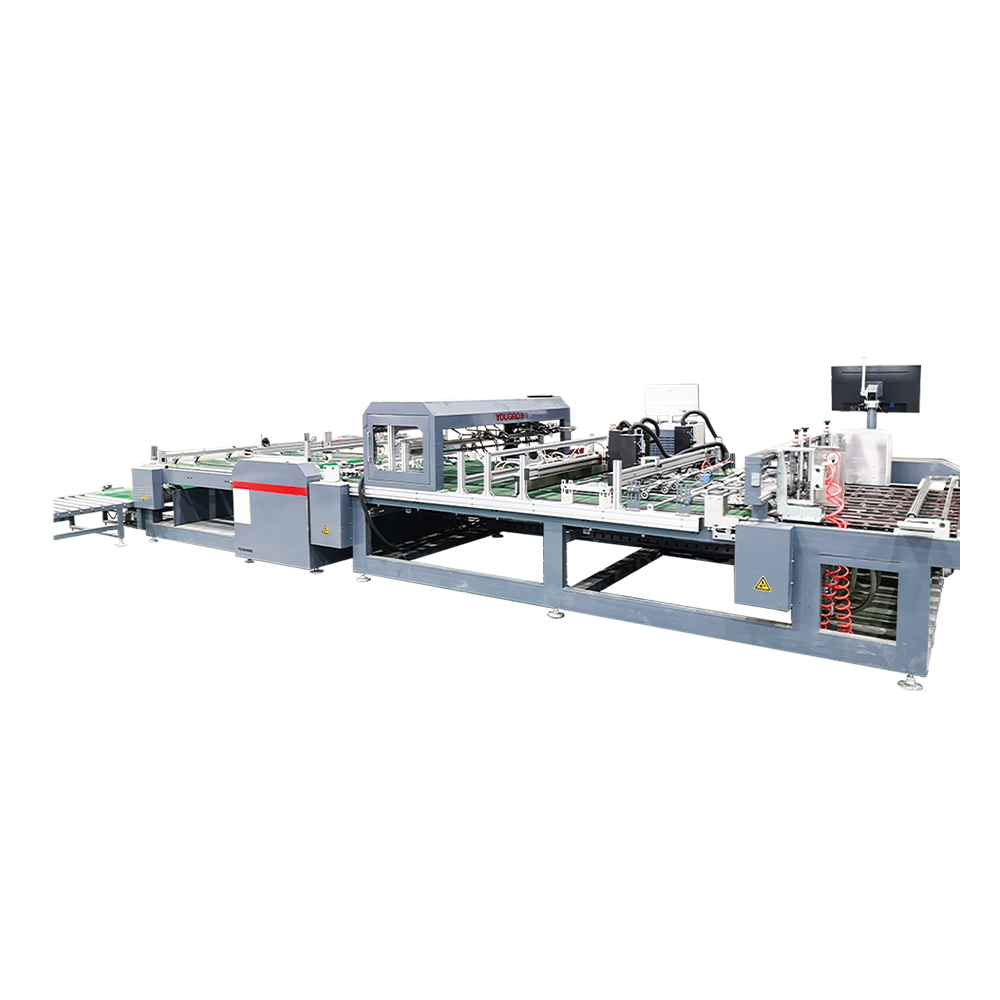

Intelligent Coding Integration for Master Cartons

Technical Parameters
System Modules: Separating Conveying Section, Coding Inspection Section, Waste Rejection Section, Transition Conveying Section, Visual Inspection System, Electrical Control System
Separating Conveying Section
a. Drive Mode: Gear motor
b. Separating Speed: 5-80m/min
c. Speed Regulation: Variable frequency speed control
d. Separating Method: Horizontal separation
e. Frame Material: Carbon steel with plastic spraying, 2.5mm thickness
Coding Inspection Section
a. Drive Mode: Gear motor
b. Running Speed: 5-110m/min
c. Speed Regulation: Variable frequency speed control
d. Conveyor Belt: Green PU belt, 2mm thickness
e. Frame Material: Carbon steel with plastic spraying, 2.5mm thickness
f. Driving & Driven Rollers: Galvanized carbon steel
Waste Rejection Section
a. Drive Mode: Gear motor
b. Running Speed: 5-110m/min
c. Rejection Method: Swing arm device (driven by servo motor)
d. Frame Material: Carbon steel with plastic spraying, 2.5mm thickness
e. Driving & Driven Rollers: Galvanized carbon steel
Transition Conveying Section
a. Drive Mode: Gear motor
b. Running Speed: 5-110m/min
c. Speed Regulation: Variable frequency speed control
d. Conveyor Belt: Green PU belt, 2mm thickness
e. Frame Material: Carbon steel with plastic spraying, 2.5mm thickness
f. Driving & Driven Rollers: Galvanized carbon steel
Electrical Control System
a. PLC control with touch screen operation
b. One independent electrical control box with built-in circuit board
c. One set of display screen and supporting bracket
d. One set of audible and visual alarm device
Visual Inspection System (Optional)
a. OCR detection
b. 1D barcode detection
c. QR code detection
d. Presence and absence detection
Equipment Configuration
a. Motor Brand: CPG
b. Inverter Brand: Schneider Electric
c. Touch Screen & PLC Brand: Schneider Electric
d. Servo Driver Brand: Schneider Electric
e. Whole machine frame: Carbon steel with plastic spraying

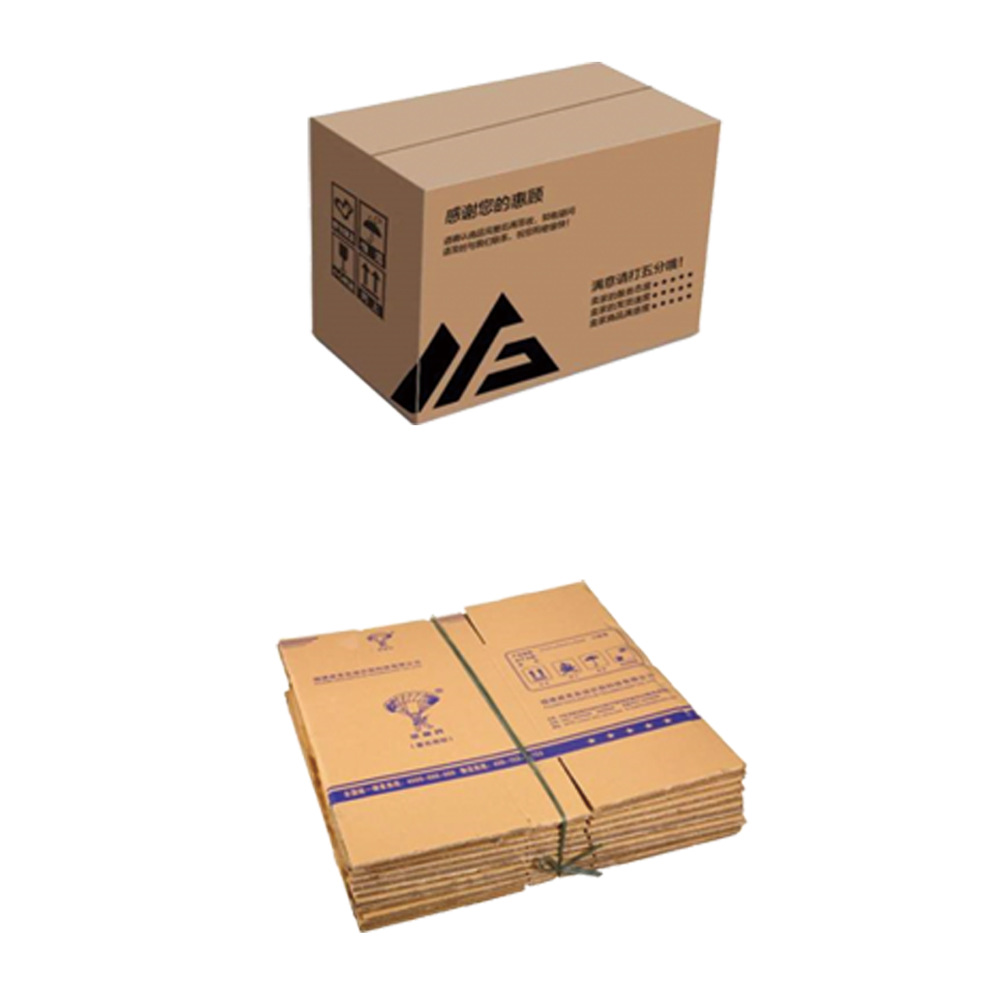

Applicable Products: Corrugated cartons
Length: 500-1200mm
Width: 350-850mm
Thickness: 6-25mm
Overall Machine Dimensions:
58501400 (overall width) / 900 (belt width) * 800 (conveying height) ±50mm
Material Receiving Platform Dimensions: 1280880*740mm

Application Scope
It is suitable for closed-loop control of auxiliary marking printing, coding information detection and verification of stacked carton products.

Applicable Industries
Food, medicine, seed, pesticide, daily chemical, tobacco, chemical industry and other industries.
