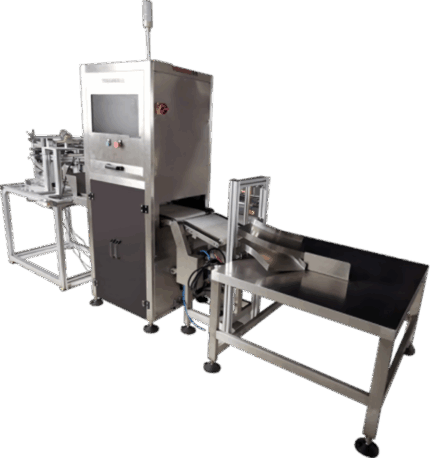

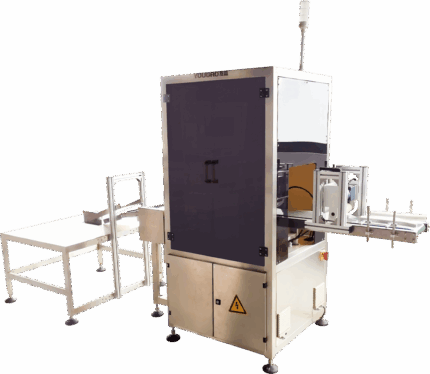

Intelligent Collection & Correlation System for Bags, cartons & stacks

Technical Parameters
1. Applicable Production Line
Compatible with 8-station packaging machines.
2. Applicable Products
Realizes bag-box code association for products processed by 8-station packaging equipment (available for third-phase inspection).
3. Production Speed
65 bags per minute (matched with packaging machine).
4. Installation Position
Camera detection module (installed inside the 8-station packaging machine).
5. System Connection
The cabinet rejection module is connected to the on-site 8-station packaging machine at the front end, and connected to the on-site carton packing line at the rear end.
6. Machine Dimensions
980*400/300*780±50 mm
7. Functional Module Configuration
Camera detection module; cabinet rejection module.
8. Detection Content
Detect coding information on package surfaces.
9. Rejection Mode
Flap conveyor rejection mechanism
10. Conveying Speed
5–40 m/min
11. Conveyor Belt Material
White food-grade PU belt
12. Drive Motor
Variable frequency motor

Application Scope
It is applicable to carton packing of bagged products, code collection and association of bundled fine-packaged products, and automatic rejection of unqualified products.

Applicable Industries
Food, pesticide, veterinary medicine, chemical industry and other industries.

Remarks
Customized intelligent code collection and association system can be designed according to different production line requirements.
