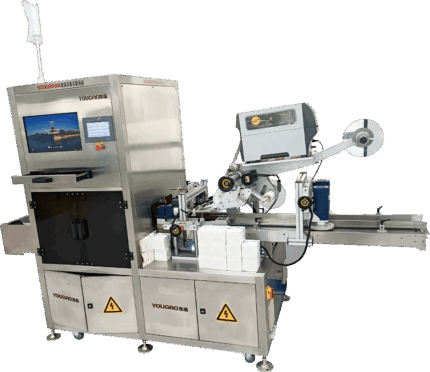

Intelligent Collection & Correlation System for Bags & Cartons
Technical Parameters
1. Applicable Products
Bagged products with width no more than 200mm (customization required for overwidth products).
2. Packaging Mode
Bag to large carton packaging
3. Installation Position
Front-end connected to on-site packaging equipment
4. Machine Dimensions
2900*650/200*850±50 mm (including working platform), of which the working platform size is 900×900 mm
5. Functional Module Configuration
1 set of detection & rejection module (cylinder rejection), 1 set of shunting module (counting shunting conveyor), carton packing module
6. Rejection Mode
Cylinder rejection
7. Conveying Speed
5–40 m/min
8. Conveyor Belt Material
Green PVC belt
9. Drive Motor
Variable frequency motor
10. Functions
Realizes code collection and association between bags and cartons for on-site products.
Application Scope
It is applicable to code collection and association of bagged products after carton packing, and realizes automatic rejection of unqualified products.
Applicable Industries
Food, pesticide, veterinary medicine, chemical industry and other industries.
