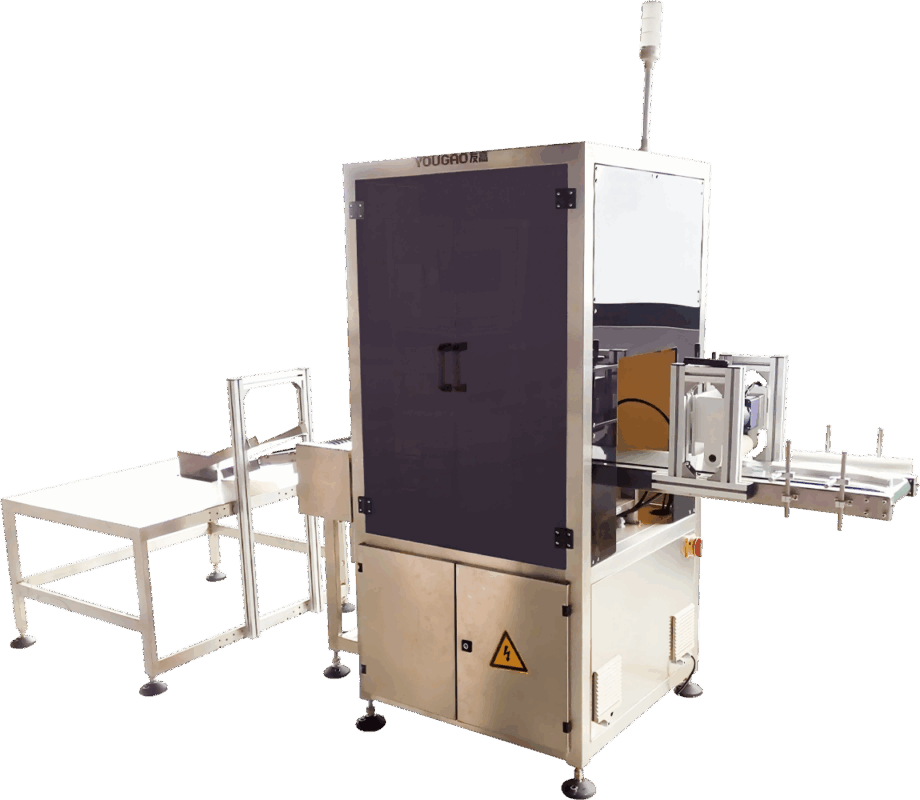

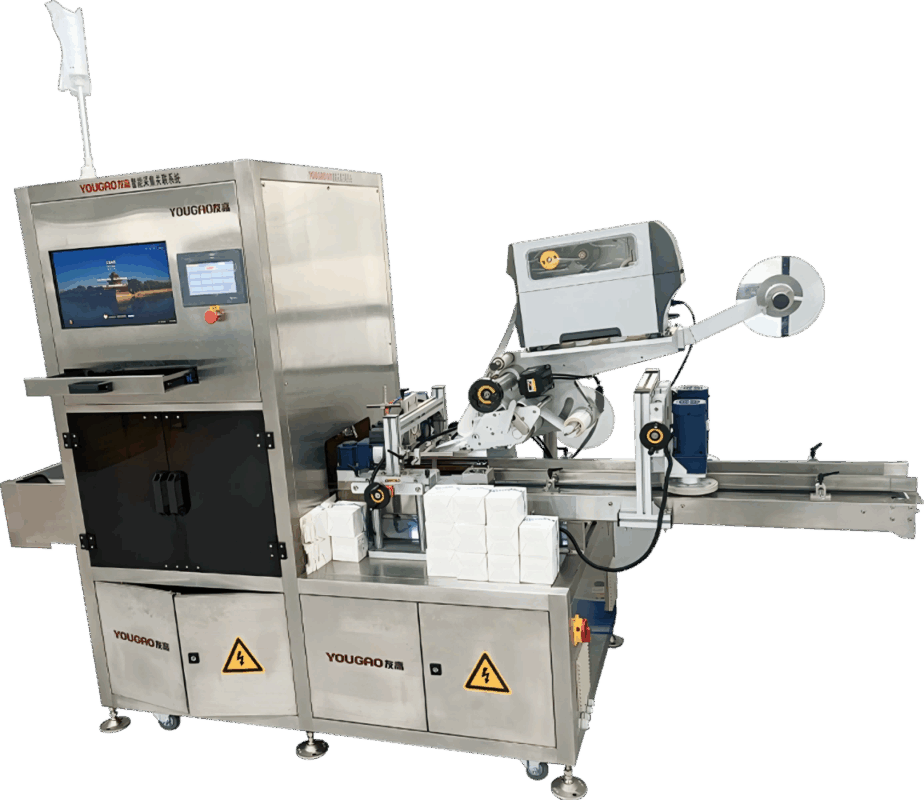

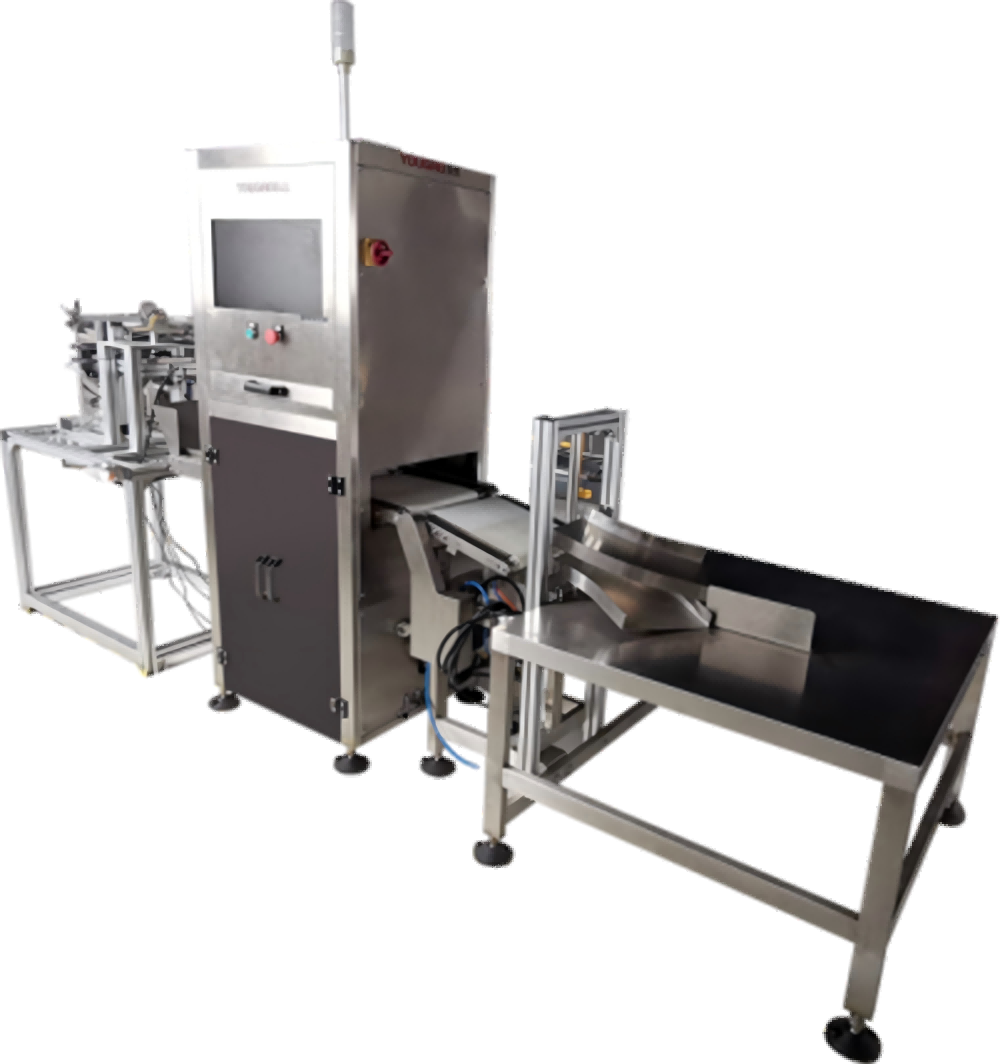

Intelligent Collection & Correlation System for Bags & Cartons(8 stations)

Technical Parameters
1. Applicable Production Line
Compatible with 8-station packaging machines.
2. Applicable Products
Realizes bag-box association for products produced on 8-station packaging lines (available for third-phase inspection).
3. Production Speed
65 bags per minute (matching with packaging machine).
4. Installation Position
Camera detection module (inside the 8-station packaging machine).
5. Connection Mode
The cabinet rejection module is connected to the on-site 8-station packaging machine at the front end, and connected to the on-site carton packing line at the rear end.
6. Machine Dimension
980*400/300*780±50 mm
7. Functional Module Configuration
Camera detection module; cabinet rejection module.
8. Detection Content
Detect packaging coding information.
9. Rejection Method
Flap conveyor rejection.
10. Conveying Speed
5–40 m/min
11. Conveyor Belt Material
White food-grade PU belt
12. Drive Motor
Variable frequency motor

Application Scope
It realizes bag-box association for products produced by 8-station packaging equipment (supporting third-phase inspection), and automatically eliminates unqualified products.

Applicable Industries
Food, beverage, wine, tobacco, pesticide and other industries.
